Mrcool Diy Mini Split - 33,000 Btu 3 Zone Ductless Air Conditioner And Heat Pump, Diy-B-327Hp091212

MRCOOL  |  SKU: DIY-B-327HP091212
$3,404.99

Product ID: 6995047645263

Delivery Time Frame: 4 - 6 Weeks

Free Nationwide Shipping

Free nationwide shipping on all orders

30-Day Return Policy

You have 30 days from the date of delivery to request a return for most new and unused items. See Return Policy.

Description

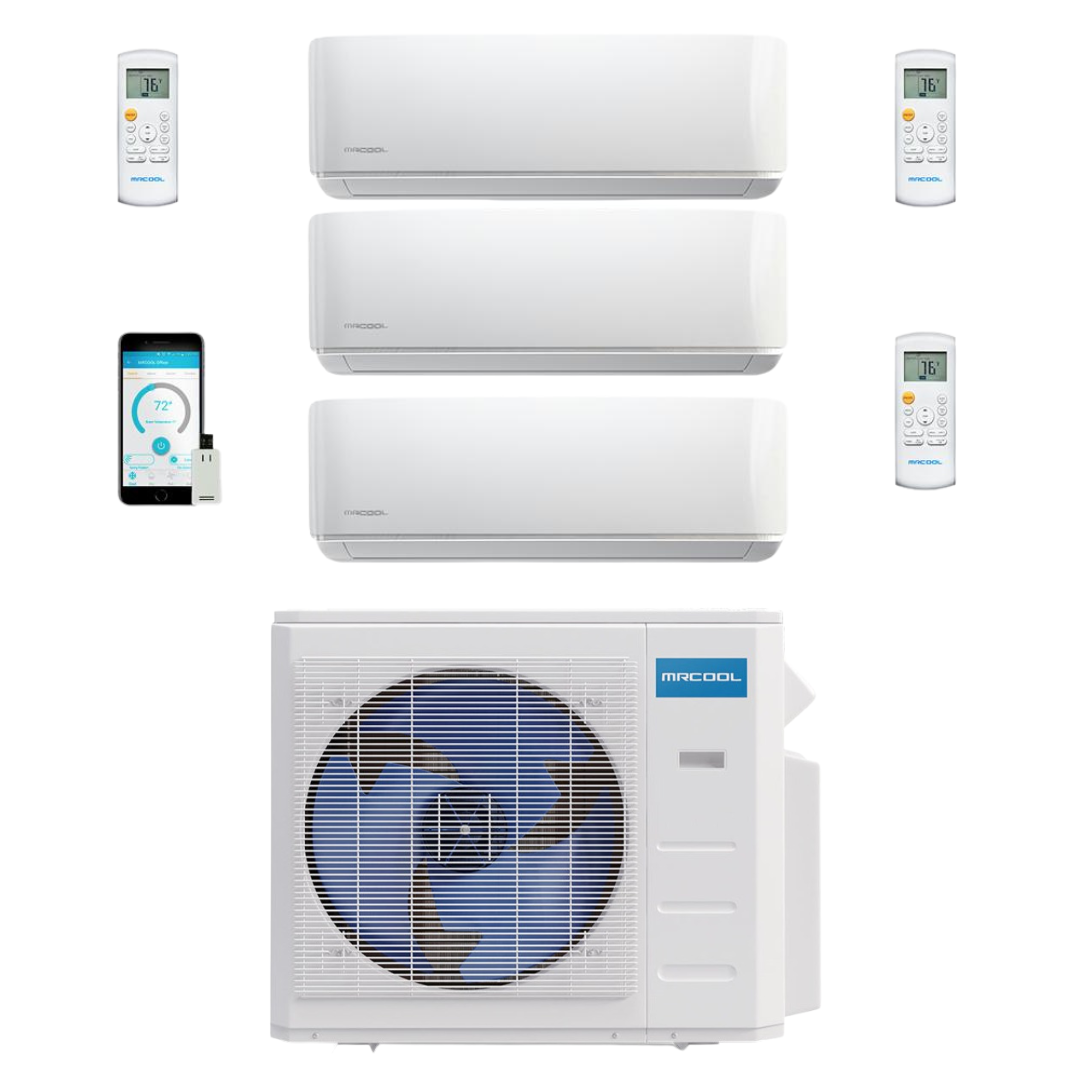

This 4th Generation MRCOOL Mini Split includes a DIY 27,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, two 12,000 BTU Wall Mounted Air Handler, and three Remotes. The best part about all of this is that you can install it yourself!




Package Includes
  • MRCOOL DIY Multi-Zone 3-Zone 27K BTU Condenser, 4th Gen Series, DIY-MULTI3-27HP230C
  • MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25
  • MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25 (x2)

This package does not include linesets, don't forgot to scroll up and add them!

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 27K BTU Rating of the Condenser.

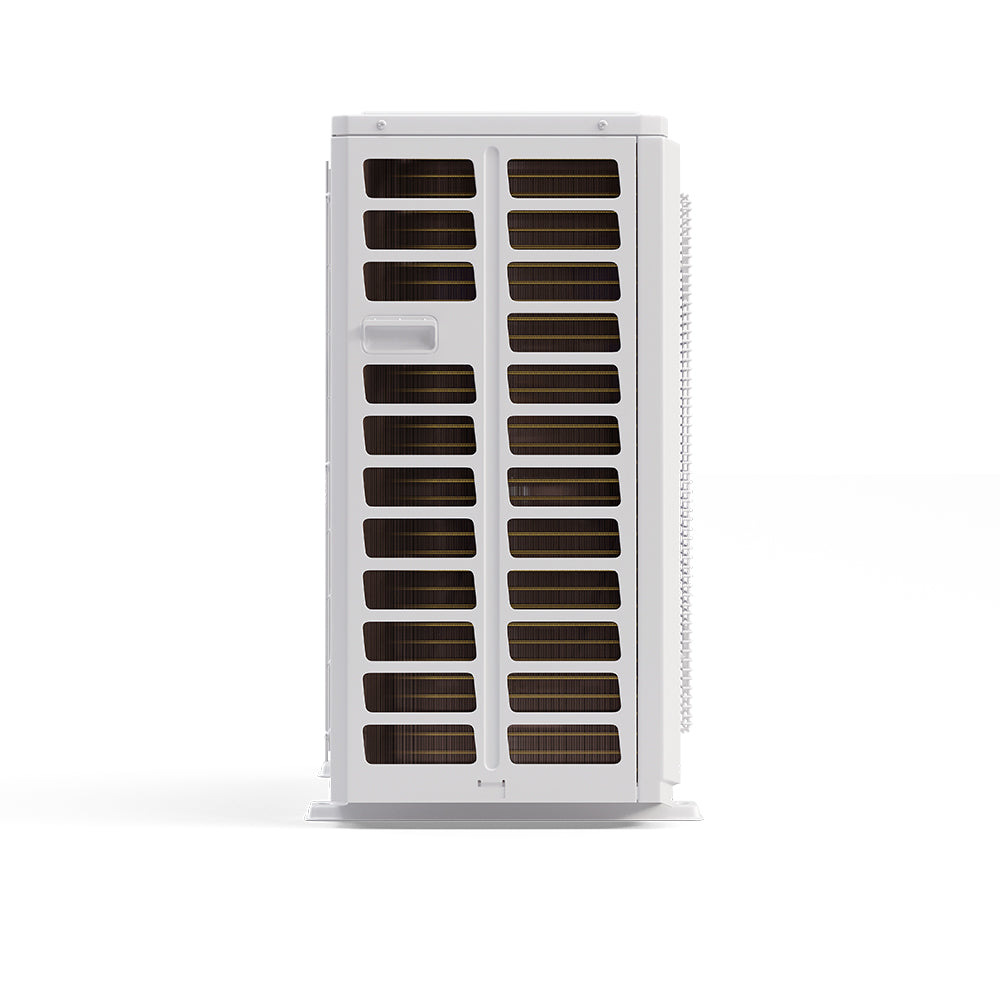

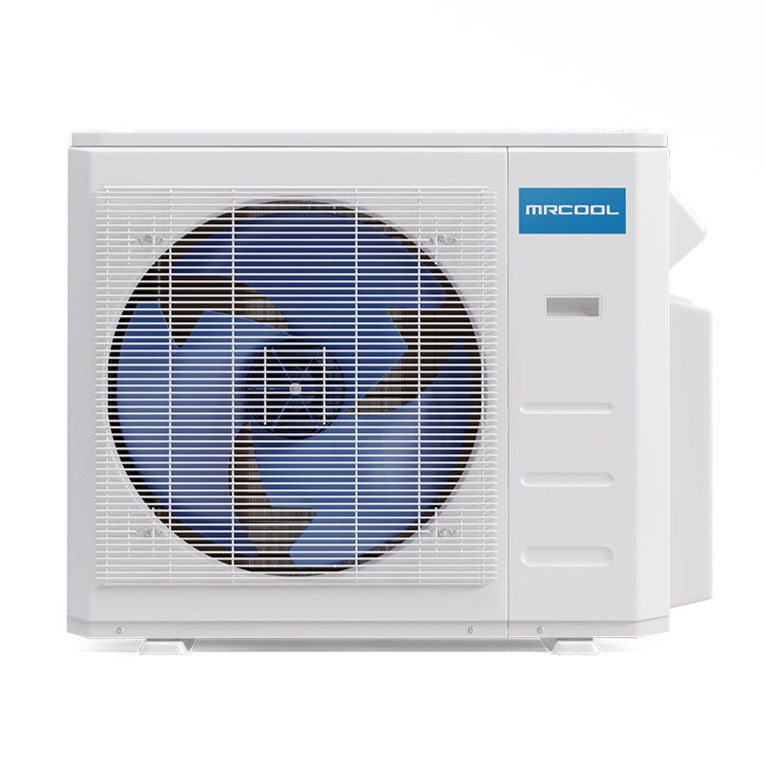

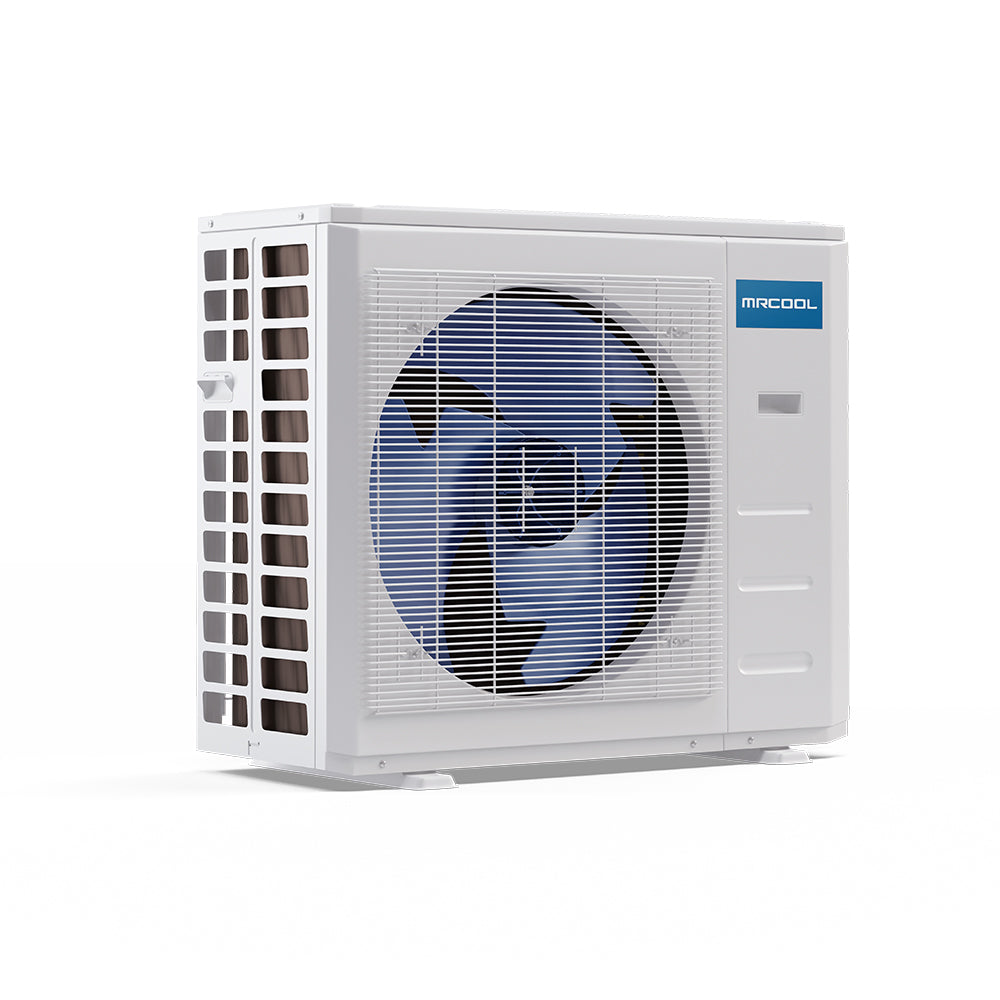

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

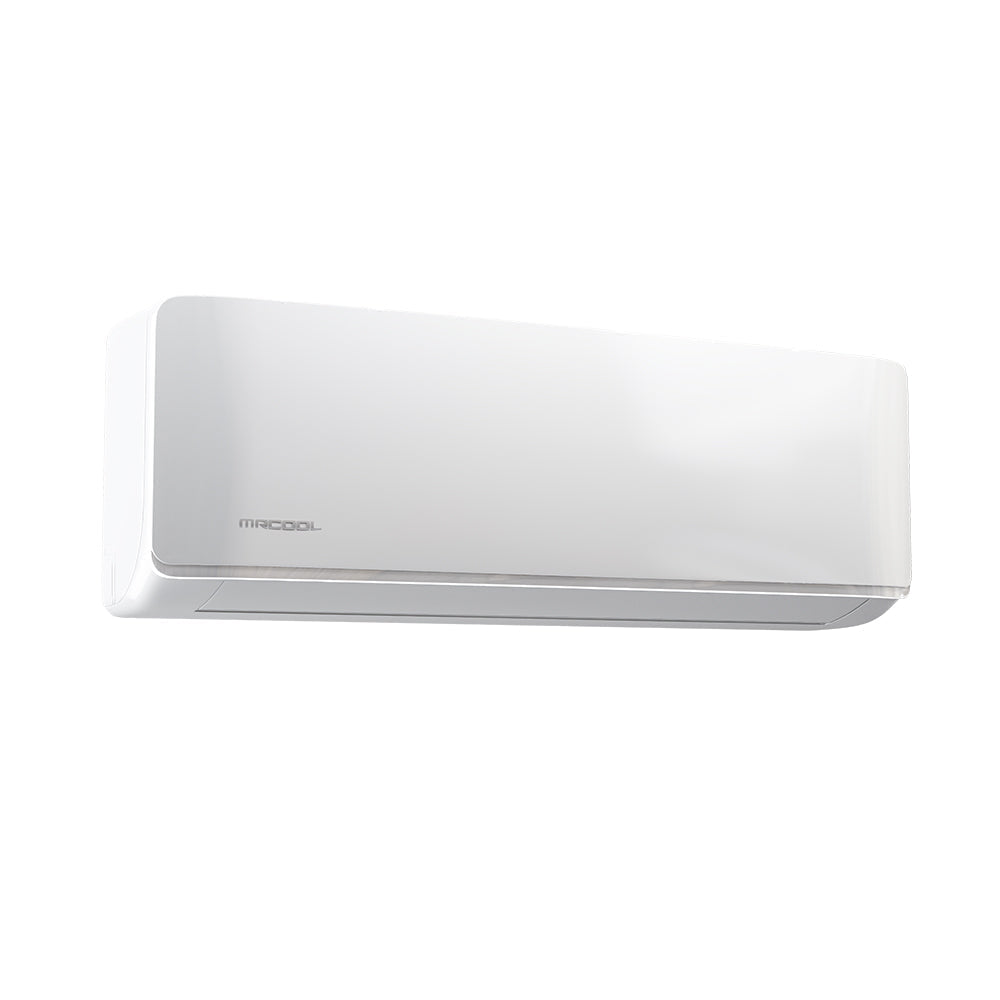

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

              PRODUCT SPECIFICATIONS:
              Condenser

              Product Dimensions 37.24"W x 16.14"D x 31.89"H
              Cooling Capacity 27,000 BTU
              Heating Capacity 27,000 BTU
              Zone Capacity 3
              Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
              Heat Mode - Outdoor Operating Temperature Range -13F ~ 75.2F
              SEER 22
              EER 12
              Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
              Registered Warranty
              7 Years Replacement on Condenser, 5 Years Parts


              Air Handler 9K BTU

              Product Dimensions 31.57"W x 7.44"D x 11.69"H
              Mount Type Wall
              Cooling Capacity 9,000 BTU
              Heating Capacity 9,000 BTU
              Registered Warranty
              5 Years Parts
              Modes Auto - auto selects from Cool, Heat or Fan-Only
              Dry - dehumidify
              Cool
              Heat
              Fan Only
              Quiet
              Sleep

              Air Handler 12K BTU

              Product Dimensions 31.57"W x 7.44"D x 11.69"H
              Mount Type Wall
              Cooling Capacity 12,000 BTU
              Heating Capacity 12,000 BTU
              Registered Warranty 5 Years Parts
              Modes Auto - auto selects from Cool, Heat or Fan-Only
              Dry - dehumidify
              Cool
              Heat
              Fan Only
              Quiet
              Sleep
