Mrcool Diy Mini Split - 39,000 Btu 3 Zone Ductless Air Conditioner And Heat Pump With 35 Ft. Install Kit, Diy348Hp09121835
MRCOOL | SKU:
DIY348HP09121835
FREE Nationwide Shipping
$6,080.99
Unit price
/
Unavailable
Mrcool Diy Mini Split - 39,000 Btu 3 Zone Ductless Air Conditioner And Heat Pump With 35 Ft. Install Kit, Diy348Hp09121835 is backordered and will ship as soon as it is back in stock.
Product ID: 6995046432847
Delivery Time Frame: 4 - 6 Weeks
Couldn't load pickup availability
Free Nationwide Shipping
Free Nationwide Shipping
Free nationwide shipping on all orders
30-Day Return Policy
30-Day Return Policy
You have 30 days from the date of delivery to request a return for most new and unused items. See Return Policy.
Description
Description

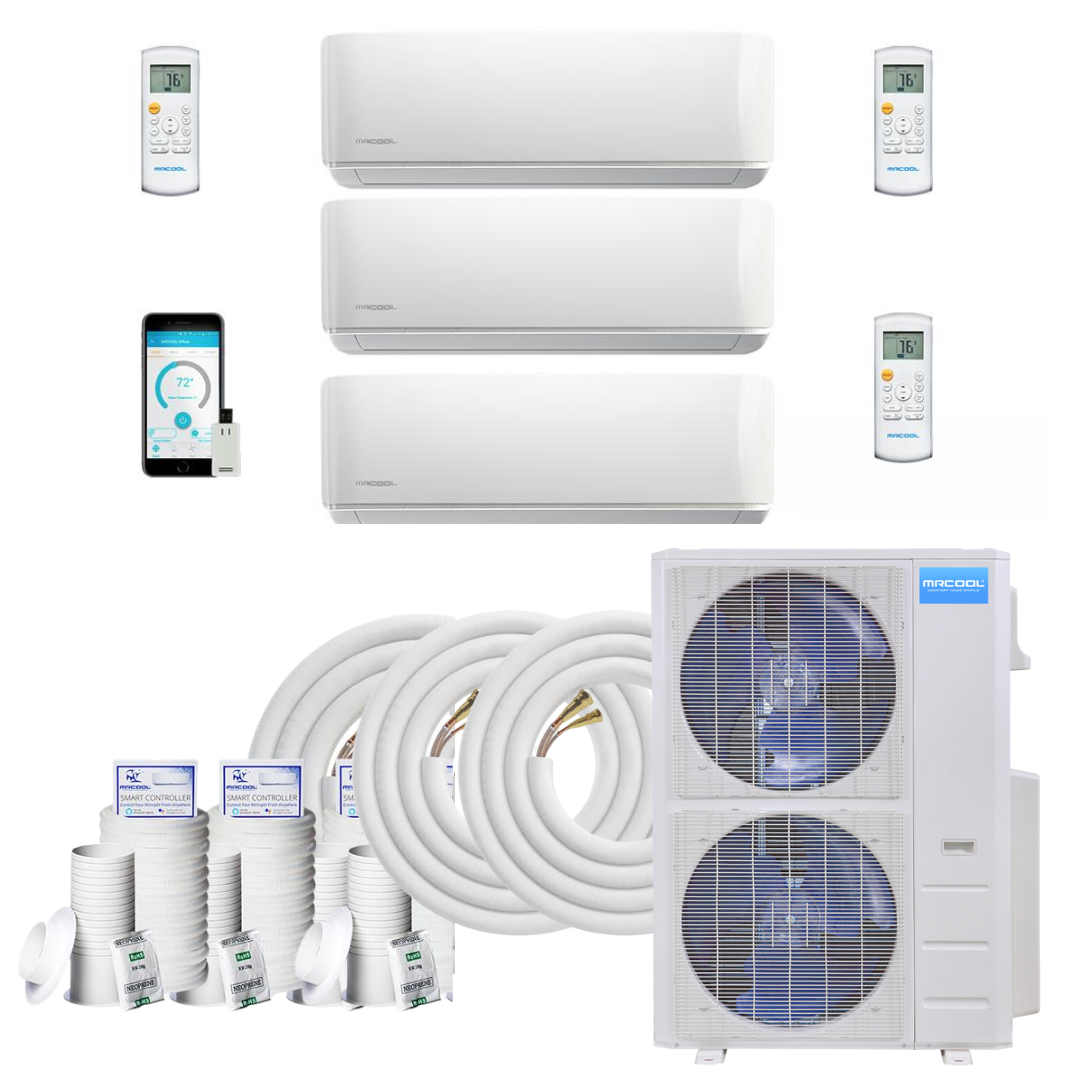

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. You'll be sent: DIY 48,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler, three Remotes and three 35 ft. Installation Kits. The best part about all of this is that you can install it yourself!
Package Includes
- MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25
- MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25
- MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25
- MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C (x3)

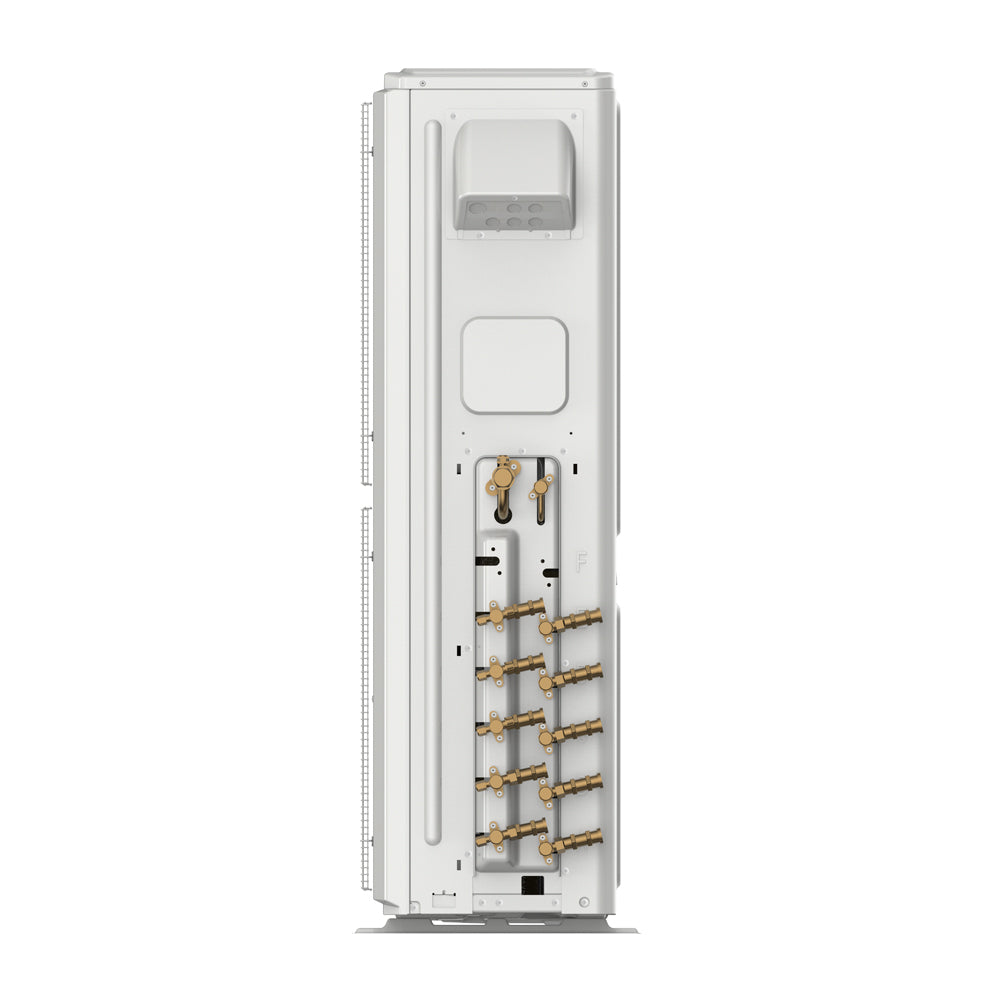

Condenser
- Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
- Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

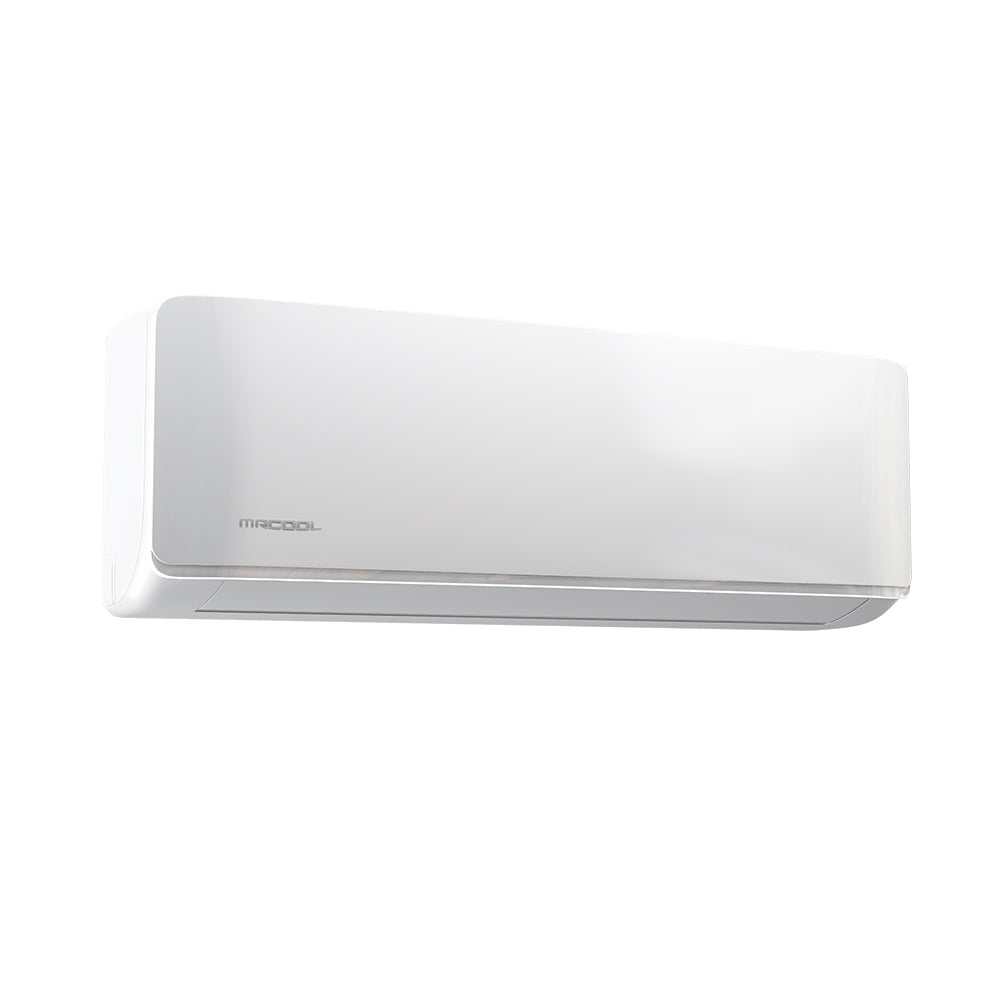

Air Handler, 9K BTU
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 12K BTU
- Large Coverage Area. Handler covers an area up to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 18K BTU
- Large Coverage Area. Handler covers an area up to 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

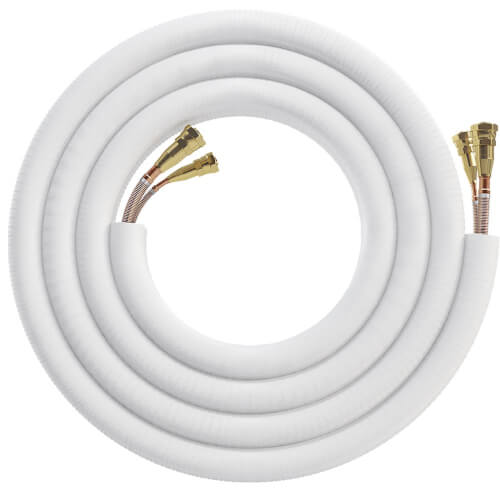

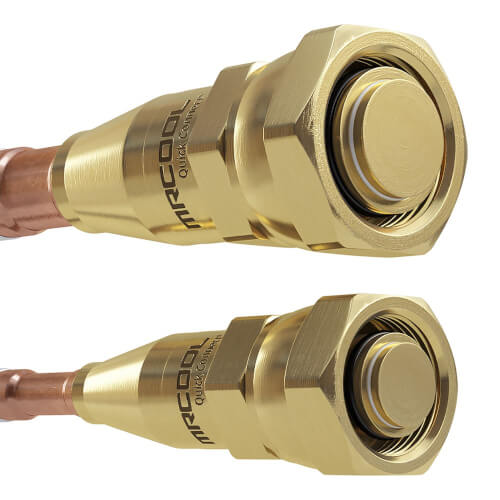

Line Set 35 ft., Quantity 3
- This 35 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
PRODUCT SPECIFICATIONS:
Condenser Specifications
| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Min Ambient Cool | 5F ~ 122F |
| Min Ambient Heat | 5F ~ 75.2F |
| SEER |
20.5 |
| EER | 11 |
| Voltage | Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
|
Registered Warranty |
7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity |
9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 12K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 18K BTU
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
| Length | 35 Feet |
| Liquid Line Size |
1/4" |
| Suction Line Size | 1/2" |
