Product ID: 6995048267855

Mrcool Diy Mini Split - 42,000 Btu 4 Zone Ductless Air Conditioner And Heat Pump, Diy-B-448Hp09091212

MRCOOL  |  SKU: DIY-B-448HP09091212
$4,83599
Shipping calculated at checkout.

Delivery Time Frame: 4 - 6 Weeks

Description

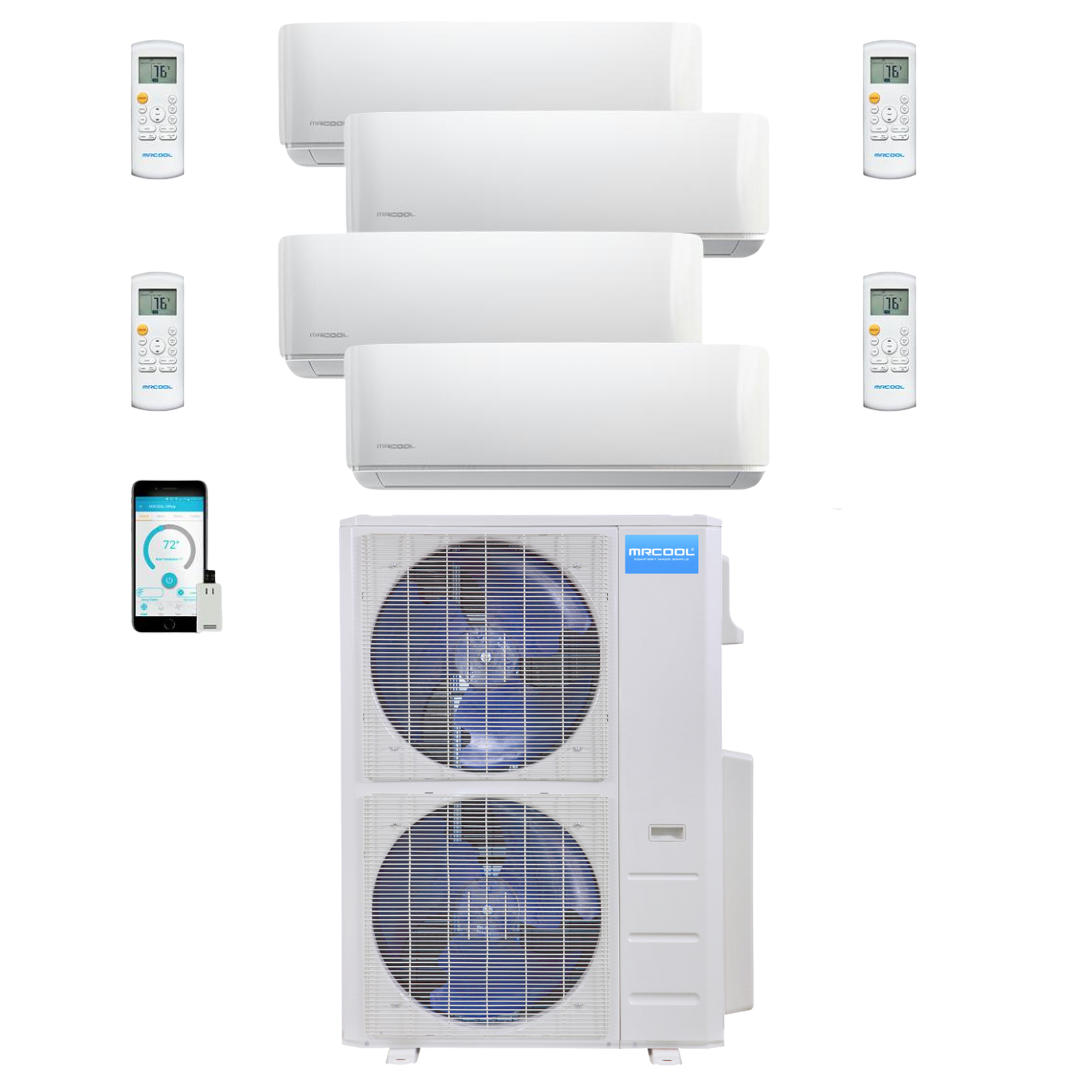

This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, two 12,000 BTU Wall Mounted Air Handler and four Remotes. The best part about all of this is that you can install it yourself!

Package Includes

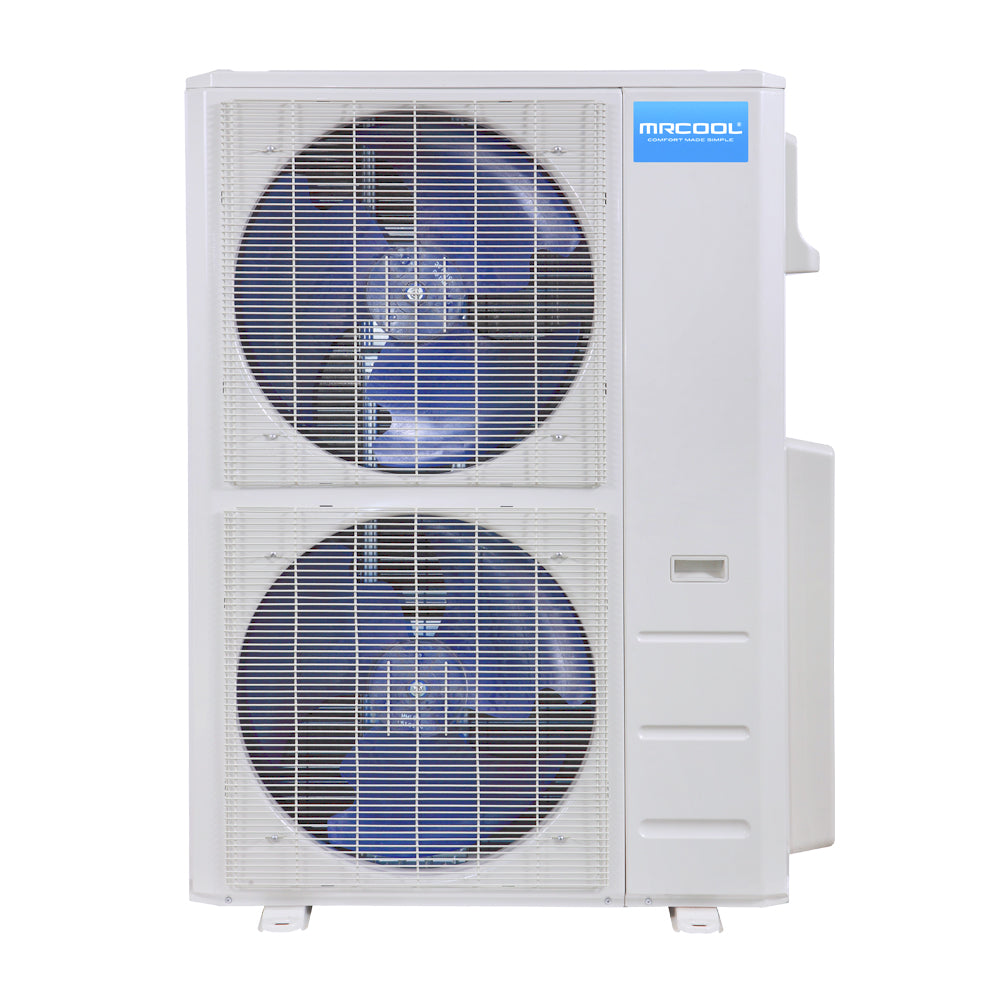

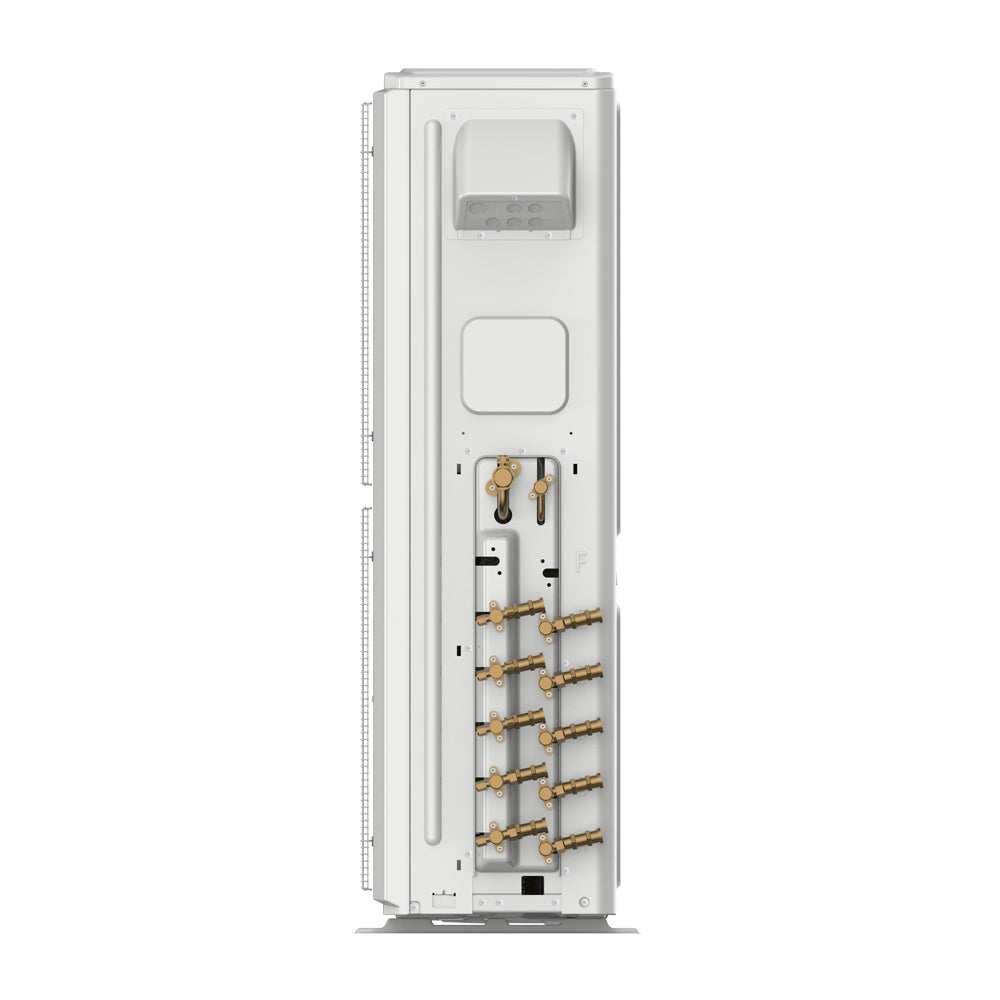

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

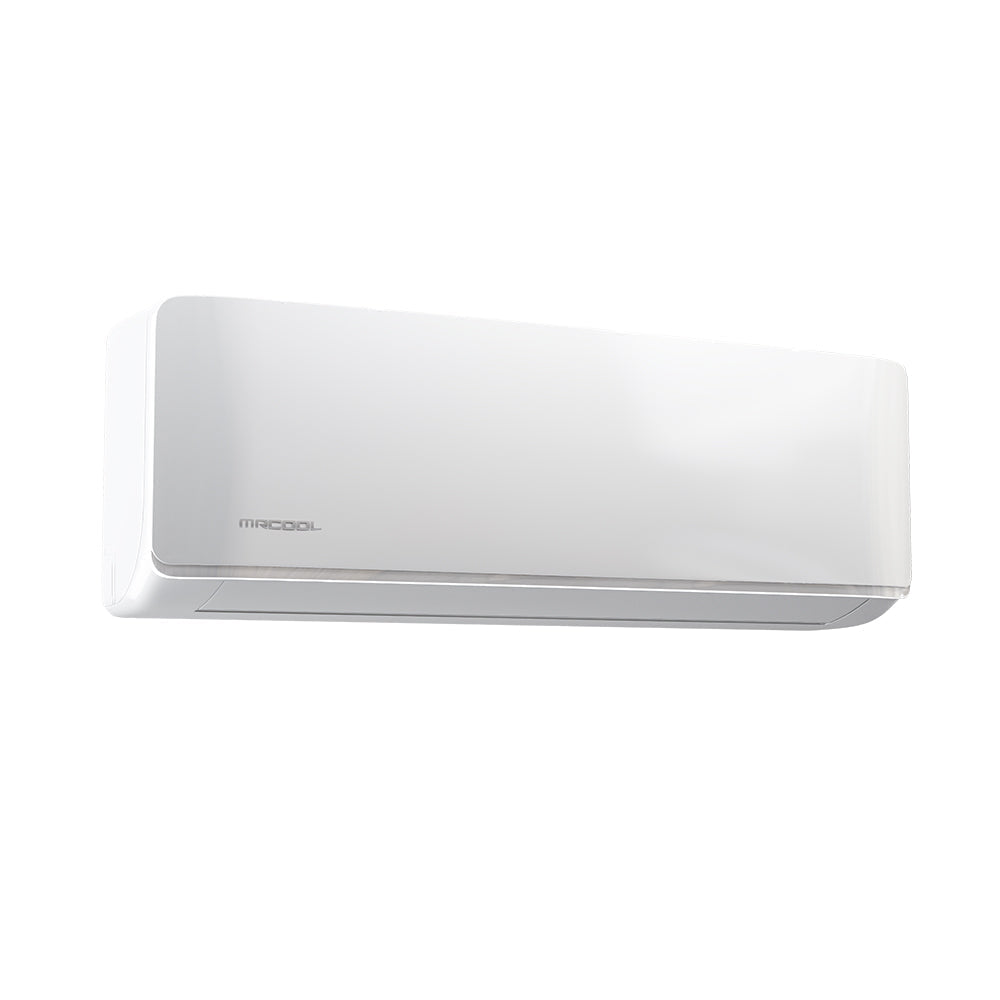

    Air Handler, 9K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

        PRODUCT SPECIFICATIONS:
        Condenser

        Product Dimensions 37.48"W x 16.34"D x 52.48"H
        Cooling Capacity 48,000 BTU
        Heating Capacity 48,000 BTU
        Zone Capacity 5
        Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
        Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
        SEER 20.5
        EER 11
        Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
        Registered Warranty
        		 7 Years Replacement on Condenser, 5 Years Parts


        Air Handler 9K BTU

        Product Dimensions 31.57"W x 7.44"D x 11.69"H
        Mount Type Wall
        Cooling Capacity 9,000 BTU
        Heating Capacity 9,000 BTU
        Registered Warranty 5 Years Parts
        Modes Auto - auto selects from Cool, Heat or Fan-Only
        Dry - dehumidify
        Cool
        Heat
        Fan Only
        Quiet
        Sleep


        Air Handler 12K BTU

        Product Dimensions 31.57"W x 7.44"D x 11.69"H
        Mount Type Wall
        Cooling Capacity 12,000 BTU
        Heating Capacity 12,000 BTU
        Registered Warranty 5 Years Parts
        Modes Auto - auto selects from Cool, Heat or Fan-Only
        Dry - dehumidify
        Cool
        Heat
        Fan Only
        Quiet
        Sleep
        MRCOOL
