Mrcool Diy Mini Split - 51,000 Btu 5 Zone Ductless Air Conditioner And Heat Pump, Diy-B-548Hp0909091212

MRCOOL  |  SKU: DIY-B-548HP0909091212
$5,276.99

Product ID: 6995046334543

Delivery Time Frame: 4 - 6 Weeks

Free Shipping

Free nationwide shipping on all orders

Description

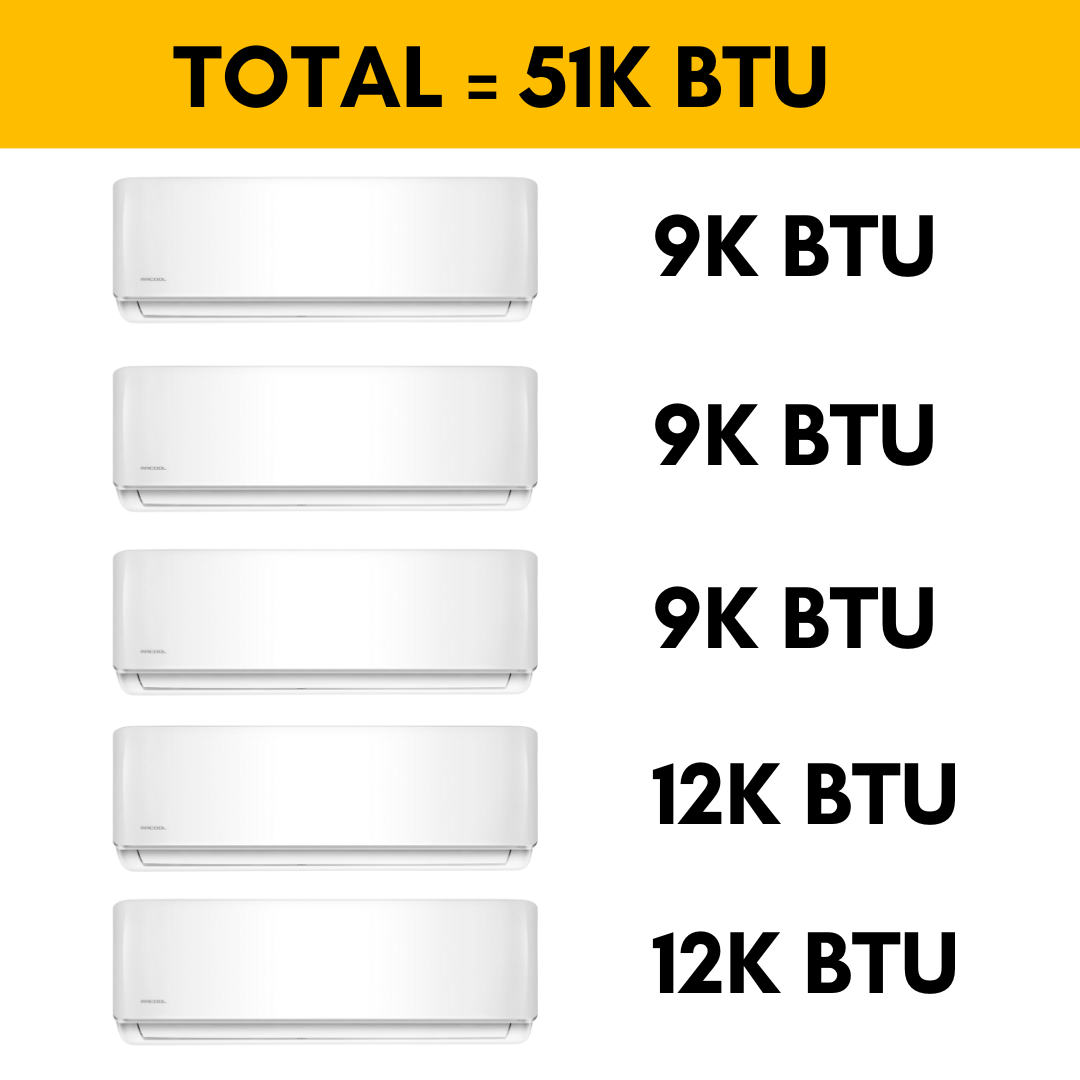

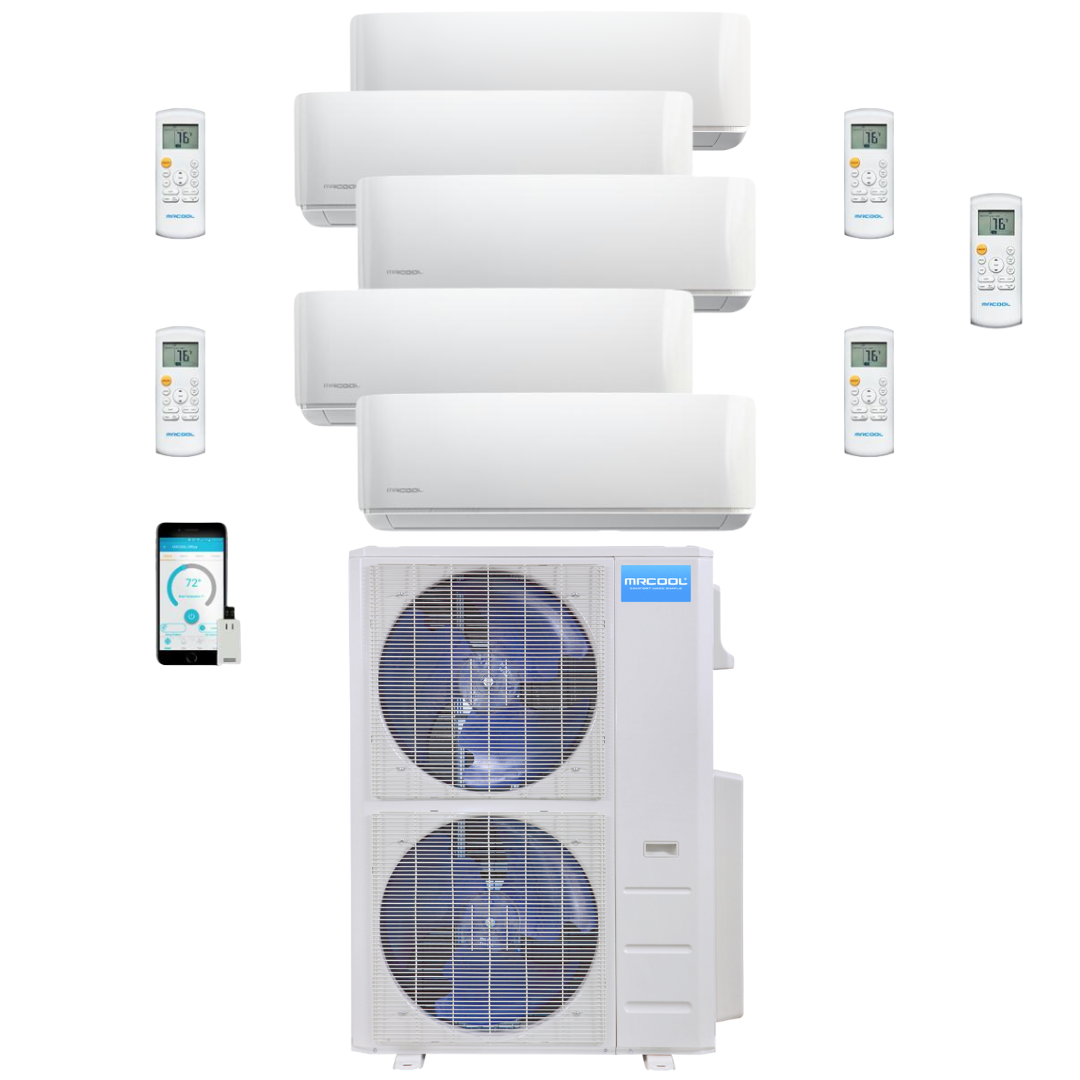

This 4th Generation MRCOOL Mini Split includes DIY 48,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handler, two 12,000 BTU Wall Mounted Air Handler, and five Remotes. The best part about all of this is that you can install it yourself!
Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.

This package does not include linesets, don't forgot to scroll up and add them!

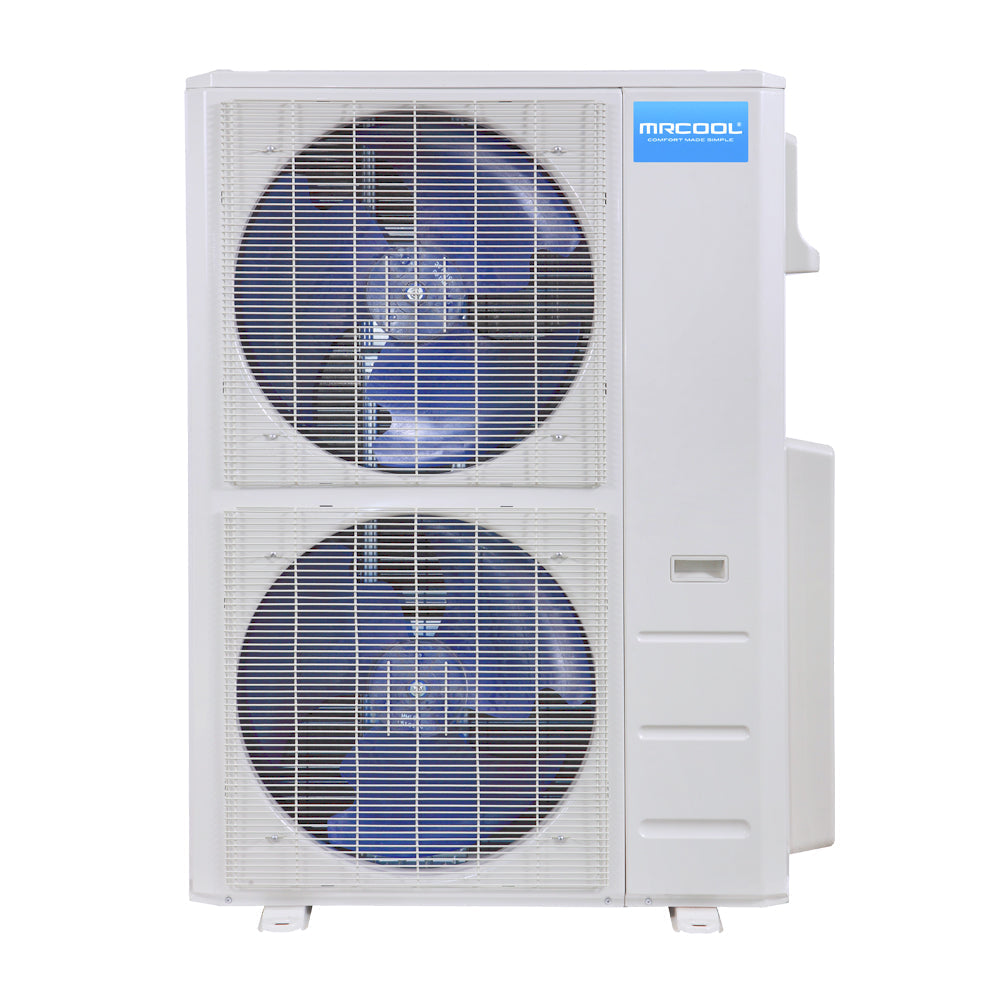

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
  • 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

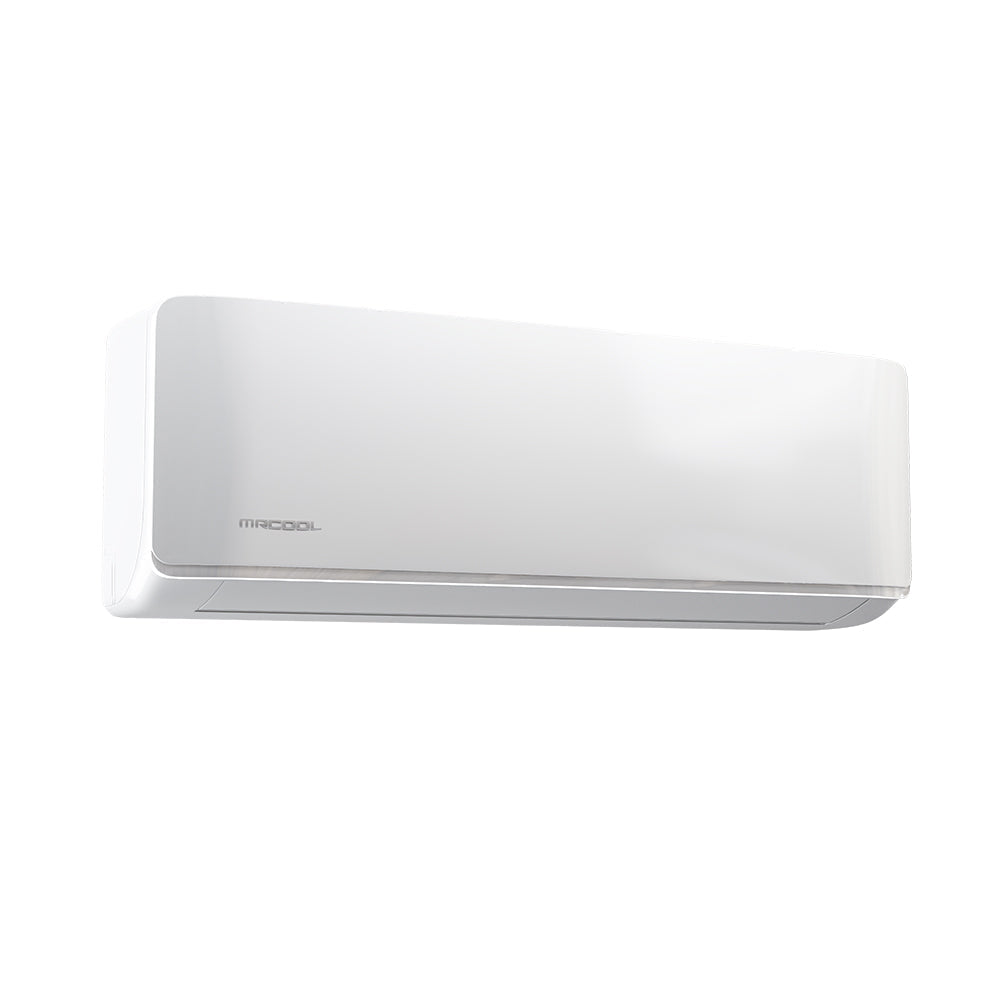

    Air Handler, 9K BTU, Quantity 3

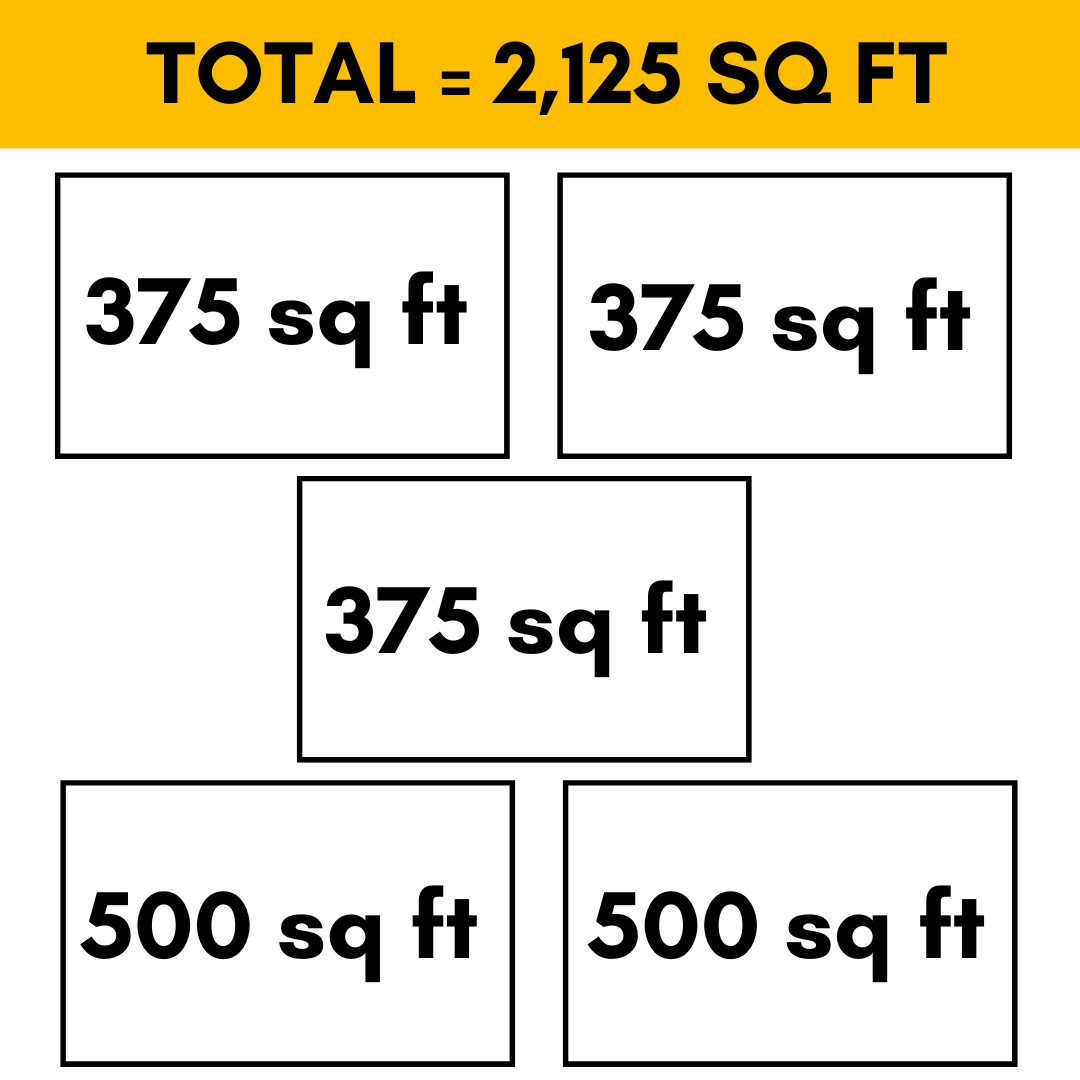

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.



          PRODUCT SPECIFICATIONS:

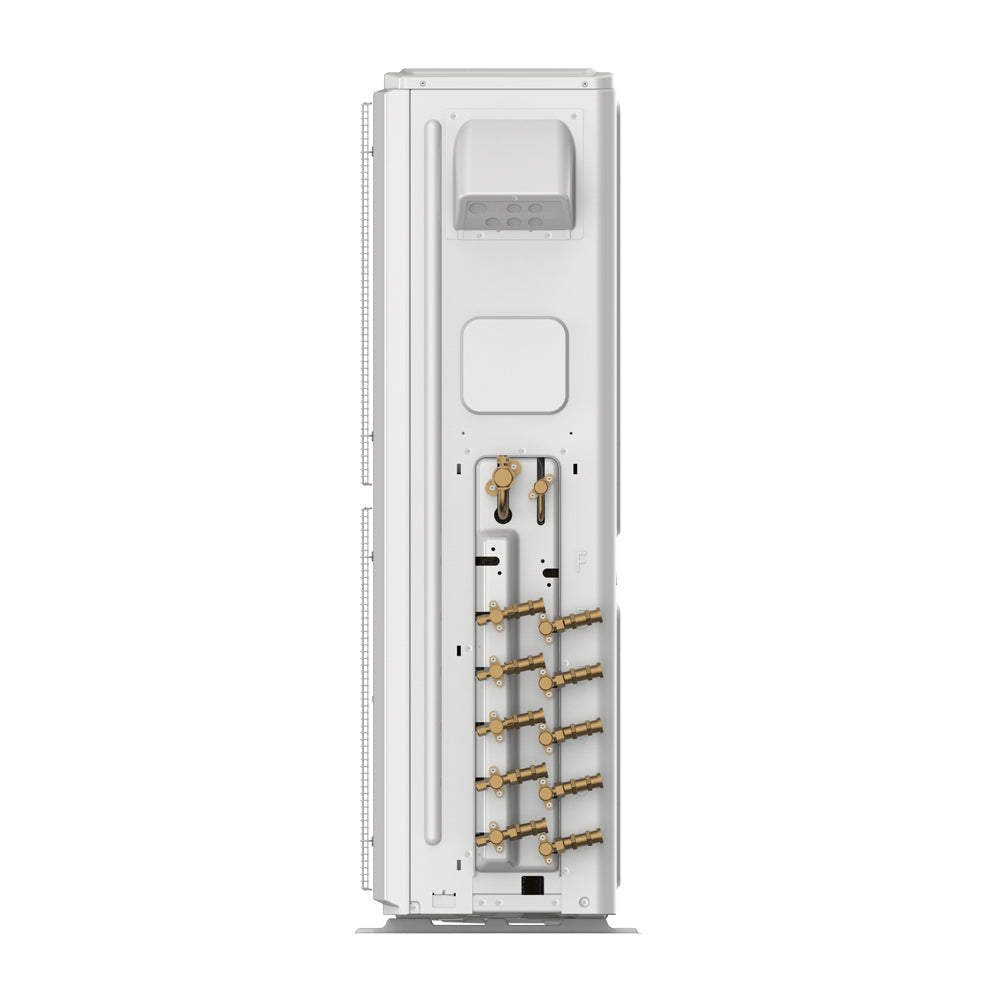

          Condenser

          Product Dimensions
          37.48"W x 16.34"D x 52.48"H
          Cooling Capacity
          48,000 BTU
          Heating Capacity
          48,000 BTU
          Zone Capacity 5
          Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
          Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
          SEER
          20.5
          EER
          11
          Voltage
          Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions
          31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity
          9,000 BTU
          Heating Capacity
          9,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 12K BTU

          Product Dimensions
          31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity
          12,000 BTU
          Heating Capacity
          12,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep
