Mrcool Diy Mini Split - 21,000 Btu 2 Zone Ceiling Cassette Ductless Air Conditioner And Heat Pump With 16Ft. And 25 Ft. Install Kit, Diy218Hpc0912-1625
MRCOOL | SKU:
DIY218HPC0912-1625
FREE Nationwide Shipping
$4,161.99
Unit price
/
Unavailable
Mrcool Diy Mini Split - 21,000 Btu 2 Zone Ceiling Cassette Ductless Air Conditioner And Heat Pump With 16Ft. And 25 Ft. Install Kit, Diy218Hpc0912-1625 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product ID: 6995048857679
Delivery Time Frame: 4 - 6 Weeks
Free Shipping
Free Shipping
Free nationwide shipping on all orders
Description
Description
This 4th Generation MRCOOL Ceiling Cassette Mini Split includes everything you need to cool and heat two different rooms. You'll be sent: DIY 18,000 BTU Multi-Zone Condenser, one 9,000 BTU Ceiling Cassette Air Handler, one 12,000 BTU Ceiling Cassette Air Handler, two Remotes, and one 16 ft. and 25 ft. Installation Kits. A low-profile heating and cooling solution that doesn't require ductwork or wall space, and fits discreetly in any space.
The best part about all of this is that you can install it yourself!
Package Includes
- MRCOOL DIY Multi-Zone 2-Zone Condenser, 4th Gen Series, DIY-MULTI2-18HP230C
- MRCOOL DIY Series 9K BTU Ceiling Cassette, DIYCASSETTE09HP-230C25
- MRCOOL DIY Series 12K BTU Ceiling Cassette, DIYCASSETTE12HP-230C25
- MRCOOL 16ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY16-1412
- MRCOOL 25ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412
If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 18K BTU Rating of the Condenser.

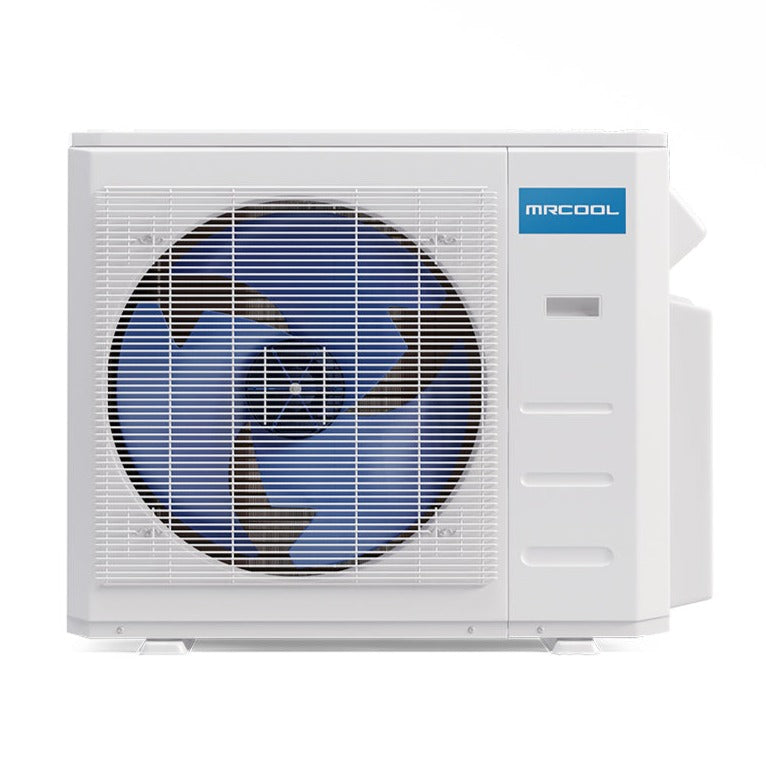

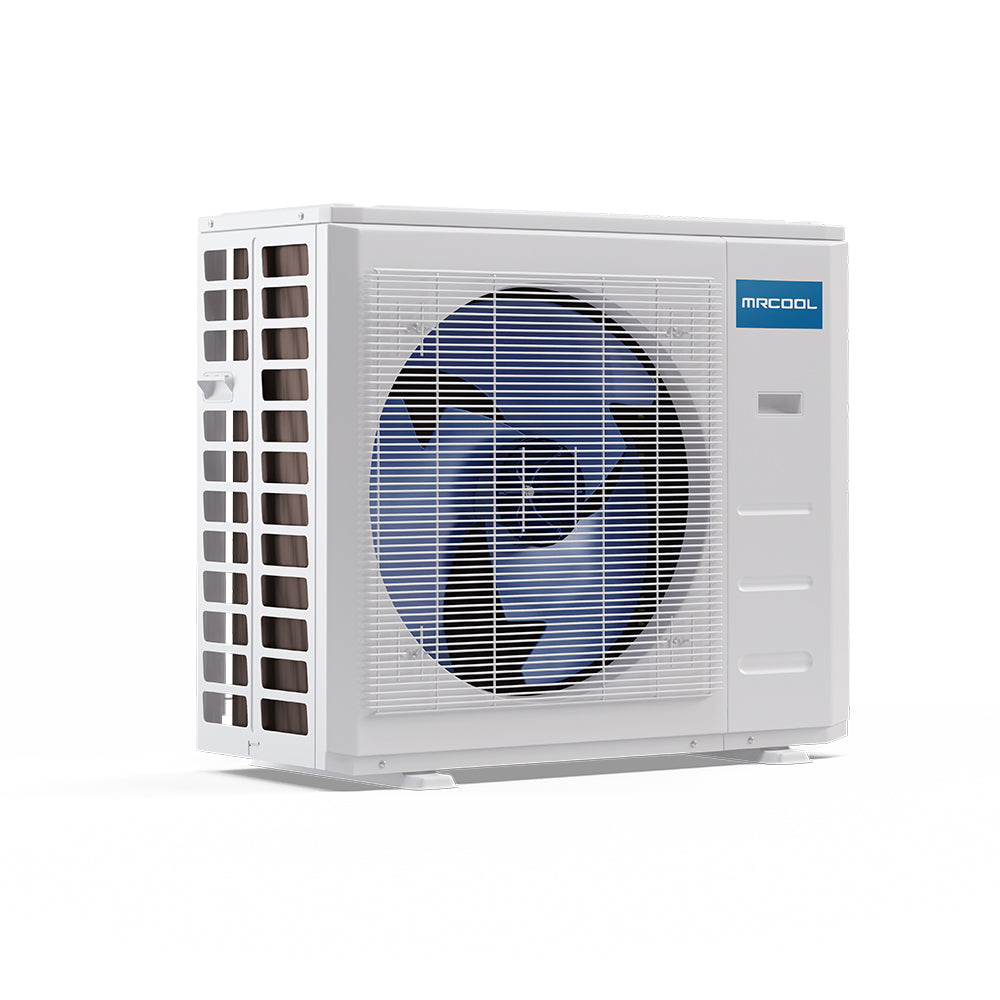

Condenser
- Energy Efficient. This 2 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating.
- Works In All Environments. The ability to heat even when temperatures drop to -13°F.
- Warranty. For added peace of mind, this condenser has a 7 years condenser replacement and 5 years parts warranty
Air Handler, 9K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
- Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
- Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.
Air Handler, 12K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
- Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
- Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

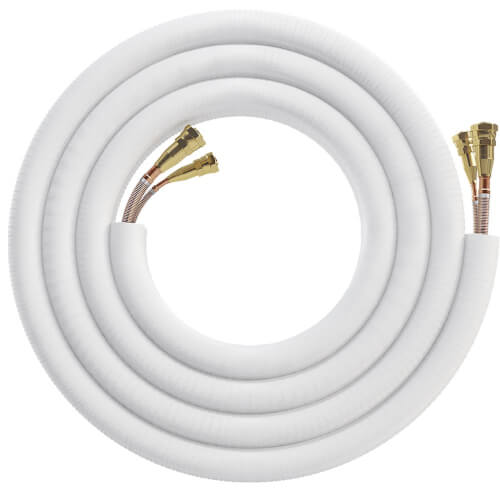

Line Set 16 ft., Quantity 1
- Pre-Charged. These copper line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
Line Set 25 ft., Quantity 1
- Pre-Charged. These copper line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions |
35.04"W x 13.46"D x 26.50"H
|
| Cooling Capacity |
18,000 BTU
|
| Heating Capacity |
19,000 BTU
|
| Zone Capacity | 2 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
| SEER |
21
|
| EER | 12.5 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
|
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions |
50.31"W x 13.19"D x 8.98"H
|
| Mount Type | Ceiling Cassette |
| Cooling Capacity |
9,000 BTU
|
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - Auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 12K BTU
| Product Dimensions |
50.31"W x 13.19"D x 8.98"H
|
| Mount Type | Ceiling Cassette |
| Cooling Capacity |
12,000 BTU
|
| Heating Capacity | 12,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - Auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
| Length |
16 Feet
|
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
Line Set
| Length |
25 Feet
|
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
Product Brochure
