Mrcool Diy Mini Split - 54,000 Btu 3 Zone Ductless Air Conditioner And Heat Pump With 25 Ft. Install Kit, Diym348Hpw04C35

MRCOOL  |  SKU: DIYM348HPW04C35

Product ID: 6995034439759

$5,596.99

Delivery and Shipping

Free nationwide shipping on all orders.

Description

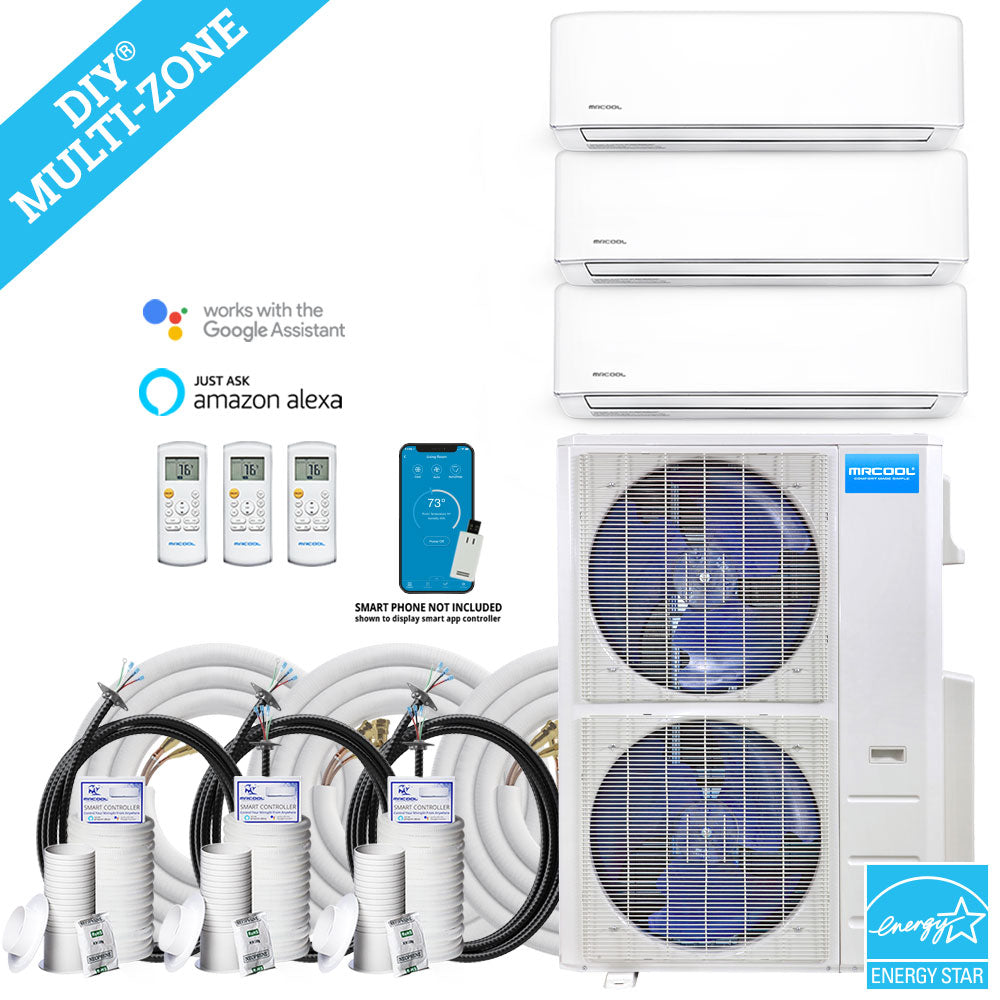

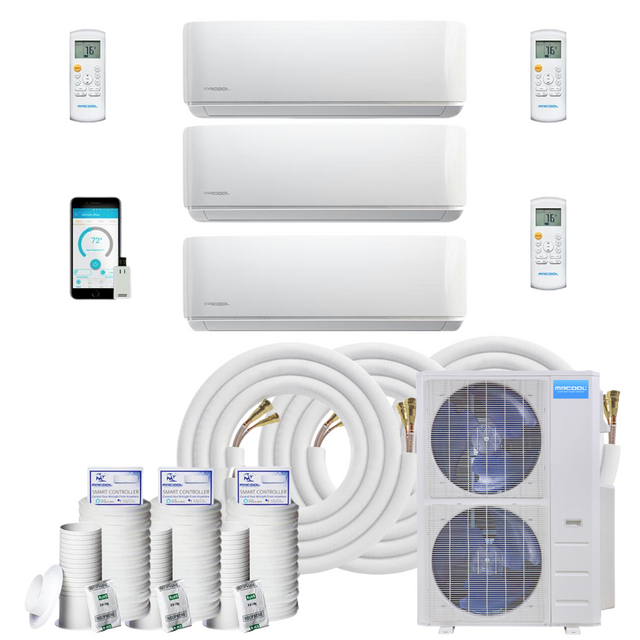

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. You'll be sent: DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, one 36,000 BTU Wall Mounted Air Handler, three Remotes, and three 25 ft. Installation Kits. The best part about all of this is that you can install it yourself!

Package Includes

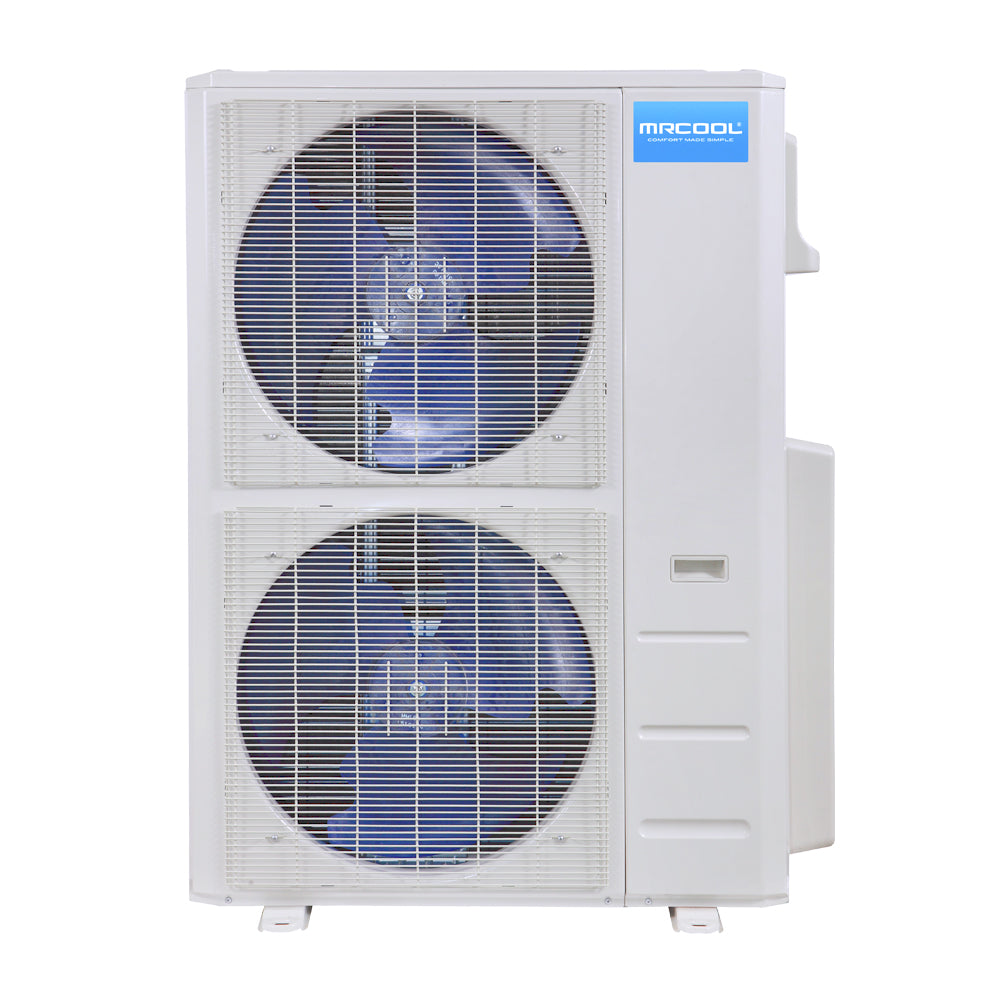

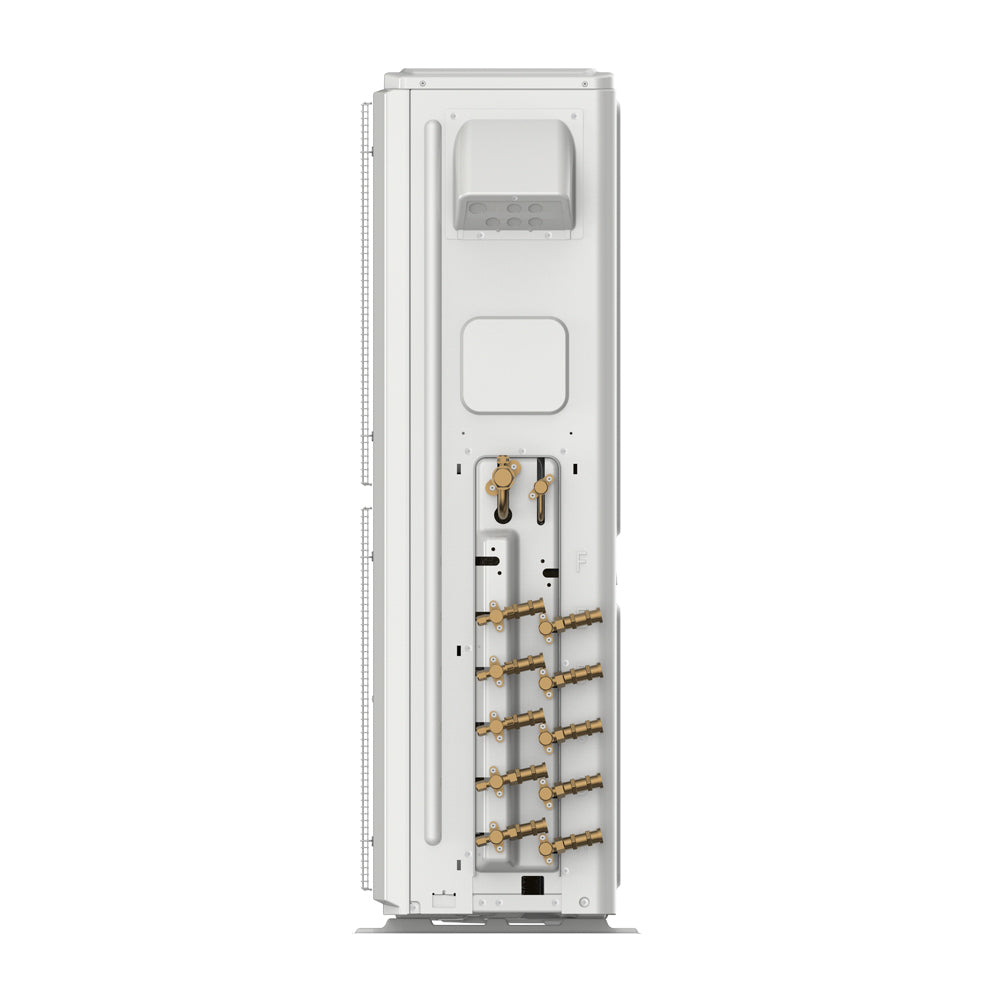

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
  • 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

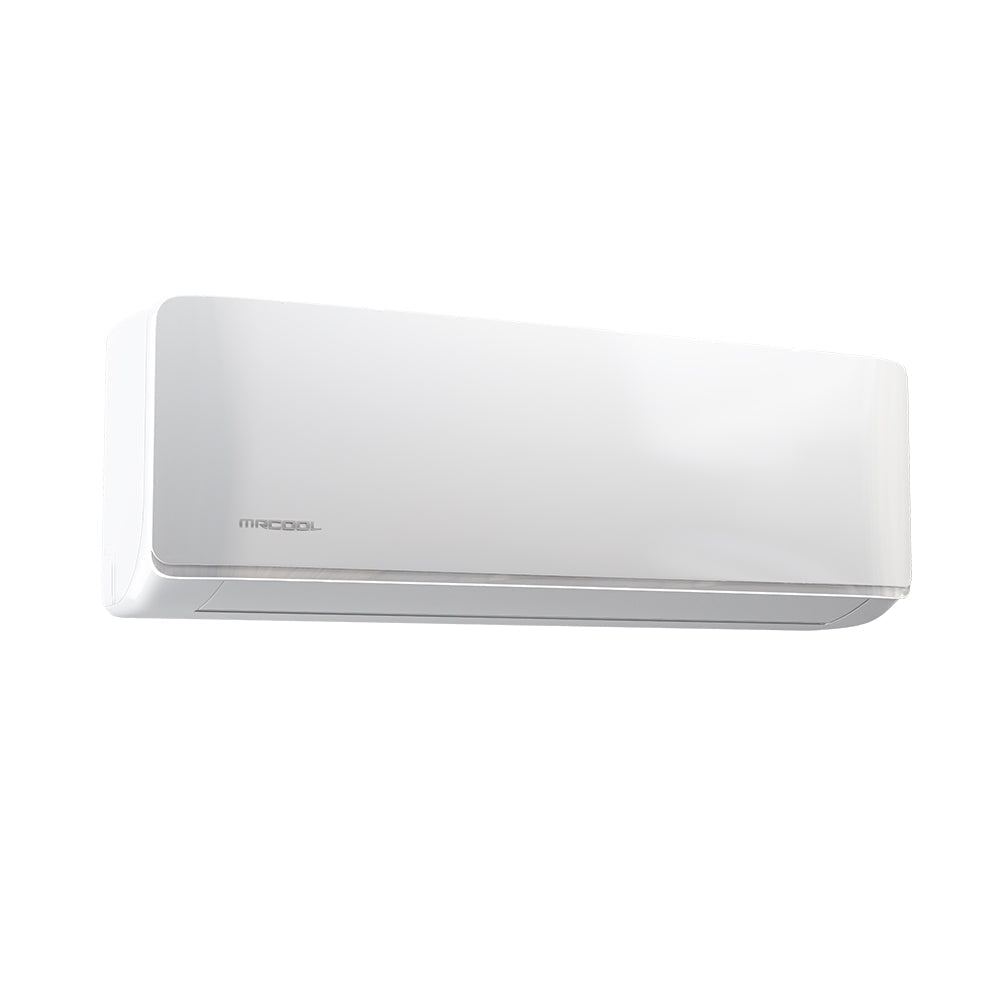

    Air Handler, 9K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to
    • 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 36K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to
    • 1,500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

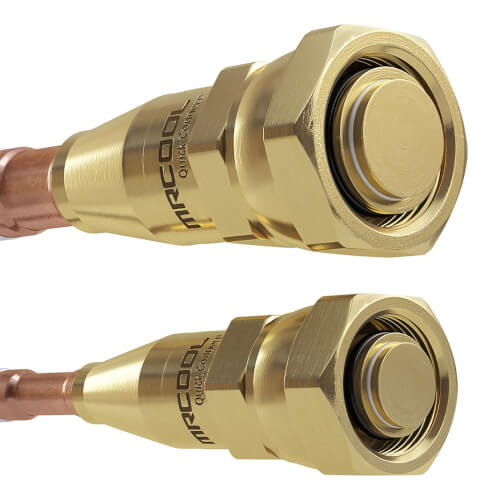

      Line Set 25 ft., Quantity 3

      • This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

          PRODUCT SPECIFICATIONS:
          Condenser Specifications

          Product Dimensions

          37.48"W x 16.34"D x 52.48"H
          Cooling Capacity

          48,000 BTU
          Heating Capacity

          48,000 BTU
          Zone Capacity 5
          Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
          Min Ambient Heat 5F ~ 75.2F
          SEER

          20.5
          EER

          11
          Voltage

          Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty
          7 Years Replacement on Condenser, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions
          31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity
          9,000 BTU
          Heating Capacity
          9,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 36K BTU

          Product Dimensions
          49.57"W x 11.10"D x 14.25"H
          Mount Type Wall
          Cooling Capacity
          36,000 BTU
          Heating Capacity
          36,000 BTU
          Registered Warranty
          5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Line Set

          Length 25 Feet
          Liquid Line Size
          3/8"
          Suction Line Size
          5/8"


          Line Set

          Length
          25 Feet
          Liquid Line Size
          1/4"
          Suction Line Size
          1/2"
          MRCOOL
